Measuring pH Redox and Data Processors

BAMO

The company BAMO is a European manufacturer of sensors and instruments for monitoring and analysing liquids. Analysis and measurement of liquids, pH, chlorine content, conductivity, water hardness, turbidity and dissolved oxygen. Monitoring and measurement of level, flow, pressure and temperature. Motorised and automatic valves. Our qualifications and experience mainly lie in the fields of hydraulics, mechanics, electronics and injection moulding. Production and product development are carried out in accordance with DIN EN ISO 9001 and the company is DIN EN ISO 9001 and ATEX certified, complying with all applicable directives and European standards. Tests are carried out both in our own test chambers and at third-party certification centres.

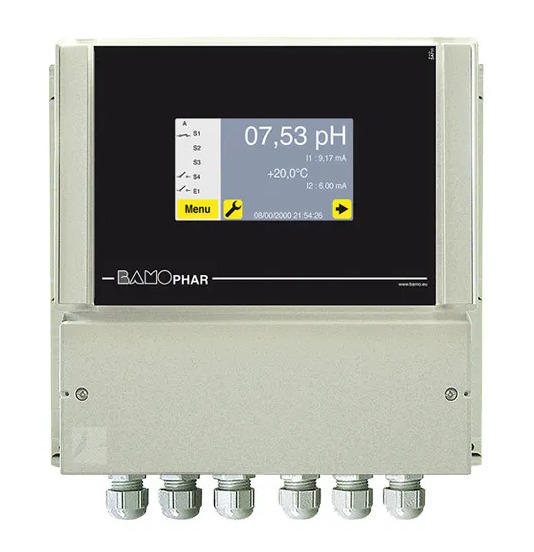

BAMOPHAR 107pH / mV Monitor

BAMOPHAR 107
pH / mV Monitor

BAMOPHAR 107 displays on a color touch-sensitive screen a multilingual friendly using menu. The reading is easy for measurement, temperature and relay status. It displays a menu with all parameters for configuration of analogue outputs, thresholds and regulation mode. For a safe start-up a test menu allow a simulation of regulation actuating all outputs and PID, relay outputs. Analogue output reflects the measurement and may be scaled all along the range. Temperature analogue output is available as well as a 4-20 mA signal. BAMOPHAR 107 offers high flexibility on use through configurations of parameters for regulation, thresholds, temperature compensation and alarms.

Manufactured part numbers open, use the search ctrl + F
107500, BAMOPHAR107 E 107501, BAMOPHAR107 E/A
107503, BAMOPHAR107 D/A 107505, BAMOPHAR107 E LOG BUS
107520, BAMOPHAR107 M 107521, BAMOPHAR107 M/A
107524, BAMOPHAR107 M LOG BUS 130150, 9336 PVC
130250, 9336 PPH 131150, 9336 AISI 316 L
130114, 9338 PVC 130113, 9338
130112, 9358 PE 130151, 9337 PVC
130112, 9358 PE 160300, 9060
610010, C3B 135520, 9346/2 PVC
135530, 9346/3 PVC 135620, 9346/2 PPH
135630, 9346/3 PPH 135112, 9358 PE
P41576, 75 PE 140301, 9222
140351, 9223 140600, 9240 PVC Y
141425, 9423 141426, 9424
143050, 8300 143100, 8336
143200, 8346 150210, 9321 pH
150112, 9308 RP 150113, 9308 RP2 pH
150342, 9387 pH 150117, 9318 RD
150120, 9312 OR 150125, 9326 F
150370, 2001 150903, 9093
150904, 9094 150906, C3B/10/CO
150907, C3B/20/CO 150908, C6B/10/CO
150912, C6B/20/CO 150917, 9096
150918, 9097

BMG 72 Galvanometric Indicator

BMG 72
Galvanometric Indicator

The device BMG 72 integrates an electronic module CUB-233 that monitors a galvanometric analogue display for level or volume on the front case. Scales are in % or litres from 0 to 50 l and up to 120 000 l. Relays outputs are adjustable all along the measuring scale (thresholds, hysteresis and timer). There are 5 available cable glands. Analogue output will be in conformity to your request: current or voltage. Relay outputs will be setup (default) for thresholds, hysteresis and timer (all adjustable on site).

Manufactured part numbers open, use the search ctrl + F
206350, Scale 0...1500 L, Ø 1250 mm 206351, Scale 0...2000 L, Ø 1250 mm
206352, Scale 0...3000 L, Ø 1250 mm 206353, Scale 0...4000 L, Ø 1250 mm
206354, Scale 0...5000 L, Ø 1500 mm 206355, Scale 0...6000 L, Ø 1500 mm
206356, Scale 0...8000 L, Ø 1900 mm 206357, Scale 0...10000 L Ø 1900 mm
206358, Scale 0...12000 L, Ø 1900 mm 206359, Scale 0...15000 L, Ø 1900 mm
206360, Scale 0...20000 L, Ø 1900 mm 206361, Scale 0...25000 L, Ø 1900 mm
206362, Scale 0...30000 L, Ø 1900 mm 206363, Scale 0...20000 L, Ø 2500 mm
206364, Scale 0...25000 L, Ø 2500 mm 206365, Scale 0...30000 L, Ø 2500 mm
206366, Scale 0...40000 L, Ø 2500 mm 206367, Scale 0...50000 L, Ø 2500 mm
206368, Scale 0...60000 L, Ø 2500 mm 206369, Scale 0...40000 L, Ø 3000 mm
206370, Scale 0...50000 L, Ø 3000 mm 206371, Scale 0...60000 L, Ø 3000 mm
206372, Scale 0...80000 L, Ø 3000 mm 206373, Scale 0...100000 L, Ø 3000 mm
206374, Scale 0...120000 L, Ø 3000 mm -

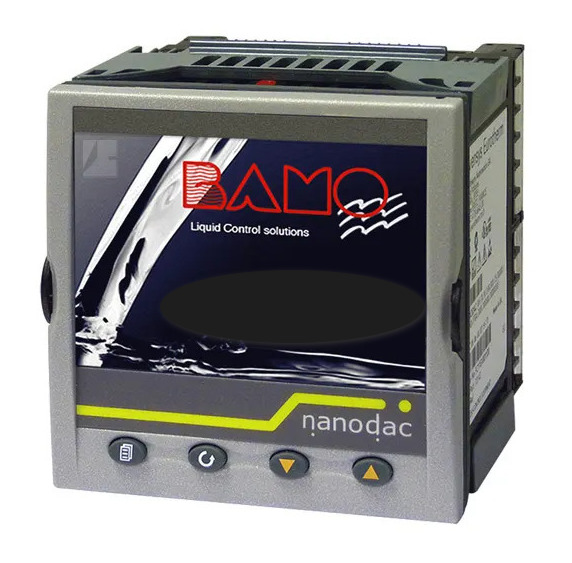

NANODACRecorder Indicator

NANODAC
Recorder Indicator

NANODAC Recorder / Regulator offers the ultimate in recording (high accuracy & secured recording, high resolution LCD) in a ¼ casing. Standard supply includes: 4 free potential inputs, 4 analogue inputs and 14 calculation channels.The 10/100Mb Ethernet port monitors Modbus TCP Slave and FTP Client Server protocols. Its USB port allows local data recovery on USB memory stick. The exploitation of acquired data is done via the software Review. The device is fully programmable via the front panel, or graphically via the iTools software.

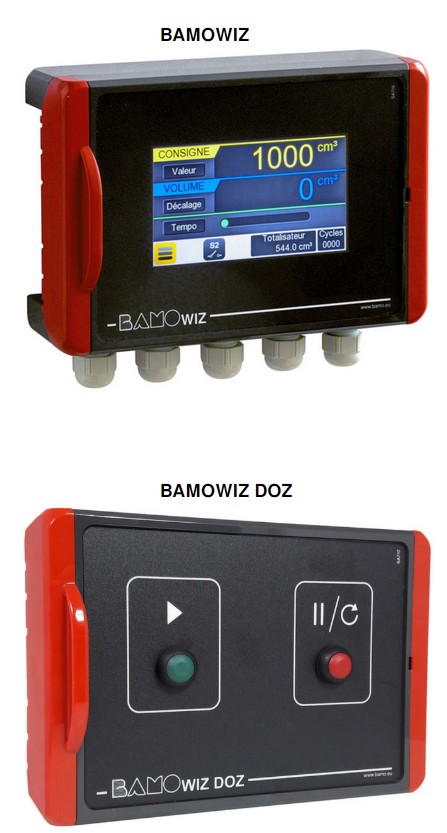

BAMOWIZBAMOWIZ DOZ Digital and graphical display

BAMOWIZ
BAMOWIZ DOZ
Digital and graphical display

The instrument BAMOWIZ has a colour touch-sensitive screen to navigate through an intuitive and multilingual menu. BAMOWIZ converts analogue input signals (4-20 mA) and delivers clear information on its large digital and graphic (Bar Graph) display for an easy reading of measurements and thresholds status. Settings are keyword protected.

BAMOWIZ has a flexibility of use for analysis of input data such as the display of level, volume or a specific parameter (pressure, temperature, turbidity, etc.). The keyboard on the touch screen allows you to set the measuring unit (Example: μS, Ohm, Ω, °C, bar, etc.). Flow-rate indicator and Totalizer with the frequency input: BAMOWIZ accepts pulse signal, for instance from BAMOFLU sensors up to 10 kHz.

The BAMOWIZ DOZ consists of two elements: a programmable monitor and a control unit. The monitor has a graphic color touch screen which facilitates parameter settings. Through a programmable factor, the input frequency is converted in a readable value such as litre, m³ etc.

Parameters shown on main display: the setpoint, the volume counted, during a dosing cycle, countdown of the ''TEMPO'' (bargraph), relay status of each: S1, S2 and S3, totalizer, number of cycles. A dosing cycle may be started (or interrupted) from the control unit which supplies and directly controls a solenoid valve via the static output. Controls of dosing start and stop can be remote from the control unit box.


ITU 402, ITU 412ITU 404, ITU 414Panel mounting indicators

ITU 402, ITU 412
ITU 404, ITU 414
Panel mounting indicators

The versatile and programmable display units are convenient for local control of process where ambient conditions are severe and humid.
- ITU 402 includes 2 relays, SPDT.
- ITU 412 includes 2 SPDT relays plus 1 analogue output 0/4-20 mA.
The 4 digits display LED of 13.8 mm high / 14 segments, has a resolution from 1999 to 9999 with a floating decimal point; it shows as well the relay status (ON/OFF) of each. All parameters are setup through the front keyboard. A multi language help file is available through the menu. Both display units are supplied on request already setup. During the start up, a test for simulation may be run on each relay without a real input signal. Both indicators provide a simple programming routine.

The versatile and programmable displays are convenient for local control of process where ambient conditions are severe and humid.
- ITU 404 includes 4 relays, SPDT.
- ITU 414 includes 4 SPDT relays plus 1 analogue output 0/4-20 mA.
Both models are designed for local process controls as well as specific linearization on non linear input signal (e.g. no volume in tank, not proportional to liquid height). The 4 digits display LED of 13.8 mm high / 14 segments, has a resolution from 1999 to 9999 with a floating decimal point; it shows as well the relay status (ON/OFF) of each relay. All parameters are set up through the front keyboard. A multi language help file is available through the menu. Supplementary functions for specific linearization and special input signal, are available with programming routine through a PC usiong software "Preset". During start up, a test for simulation may be run on each relay without a real input signal. Both indicators provide a simple programming routine.


BMPC 4896Indicator

BMPC 4896
Indicator

The lid has a cutout suitable for a 48x96 mm indicator panel mounting. 5 cable glands will insure a protection IP 55. For assembly, the lid is removed, the indicator is secured on it and wiring can be done easily. We can supply complete assembly with indicator and all parameters set.
– Gasoil tank, height or volume: Potentiometer, 2-wire sensors, 4-20 mA.
– Flow / Counter: Pulses.
It can be installed on a wall of a technical room or boiler room.

Manufactured part numbers open, use the search ctrl + F
222452, BMPC 4896, Cabinet alone with cutout.
222715, BMPC 4896-414, Cabinet with ITU 222414 fitted.
222720, BMPC 4896-412, Cabinet with ITU 222412 fitted.
222725, BMPC 4896-402, Cabinet with ITU 222402 fitted.
222730, BMPC 4896-404,

MultiCONT Multi-parameter monitor

MultiCONT
Multi-parameter monitor

The MultiCONT is a universal interface between various level transmitters using HART or Modbus protocol and the other elements of the process control system such as the PC or PLC. Up to 15 connected transmitters. MultiCONT can communicate with up to 15 transmitters (2- or 4-wire) with HART protocol, but, with only 6 radar transmitters PiloTREK (maximum). The unit can perform various operations such as remote settings, loading the programming of a unit or downloading measured values. The graphic screen facilitates access to a wide variety of functions such as to display the contents of a tank or status of compatible ultrasonic transmitters. MultiCONT offers numerous configuration possibilities, obtained by adding and combining scalable modules: up to 2 analog outputs and / or from 1 to 5 relays. The option RS485 interface allows to connect several MultiCONT together to increase the number of transmitters in use.

ATEX version of the MultiCONT allows you to control a multipoint system with a maximum of 4 devices (or only 2 PiloTREK); The unit must be install in the safe area. MultiCONT Ex versions provide power for 2-wire Ex compatible transmitters installed in hazardous areas and display the measured values. Benefits: The MultiCONT is competitive regarding all possibilities it offers, it achieves an incomparable low investment with multiple connected transmitters, up to.


EVEREST 214S Measuring Amplifier

EVEREST 214S
Measuring Amplifier

The two-channel measuring amplifier EVEREST 214S is a processor-controlled display device for DIN rail mounting. Control device for standardized 4-20mA transmitters in industrial applications. It has a built-in timer; It supplies 2-wire sensors with 24 V DC voltage. It allows a simple conversion of analog signals to limit values remote controls. Free scalable inputs and relays allows a wide domain of application.


CUB-233 Versatil Converter

CUB-233
Versatil Converter

Converter 233 is a great solution for any applications to convert or monitor output signals from sensors. Both analogue outputs may be set up as mA or mV signals and both relay outputs may be set up all along the scale (thresholds, hysteresis and delay). For most of all use on signal conversion:
- Level measuring probe with potentiometric output
- Level measuring probe, 2-wire, 4-20 mA output
- Temperature probe with Pt 100 sensors or thermocouple
- Zooming on input signal
- Linearization along "up to" 100 points
- Alarming function for all the above sensor
