Single-channel process controllers PMA
When should you use a Single Loop Controller? If a system requires a single control loop or discrete devices then a single loop controller can be used to control a thermal or process machine. These instruments can range from the very basic - single, manual, setpoint changes, through to sophisticated profilers which have the capability to execute multiple setpoint changes over a specified period of time. Single loop controllers are typically front-of-panel products. These controllers provide a clear display on the front of the controller. The machine operator or engineer (end user) can use this display to set up the controller in situ and make subsequent program changes.

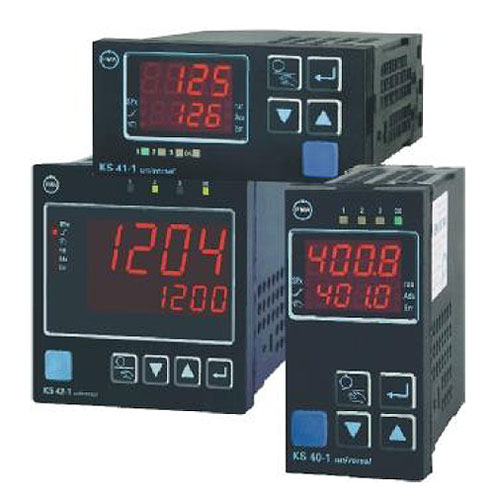

The universal temperature controller KS 40-1 is intended for universal, precise, and cost-effective control tasks in all branches of industry. For this, the unit provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement or as an external setpoint input. The KS 40-1 has three process outputs that can be 3 relays or 2 relays plus a universal output. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a two-wire transmitter.
Available in 2021 models and options expand / close
|
Single Loop Process Controller
KS90-1
KS92-1
Full Order Number: KS9x-1xx-xxxxx-xxx

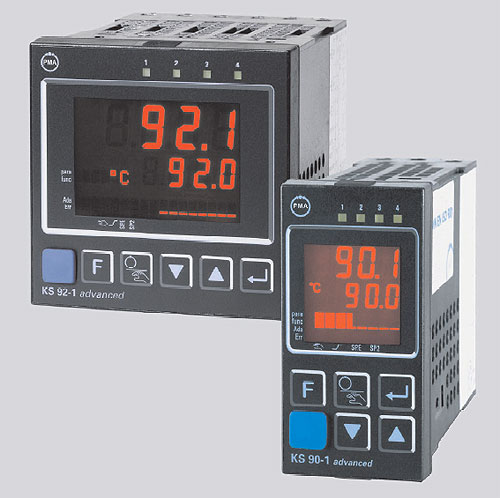

The KS 90-1 process controller is suitable for universal, precise, and cost-effective control. The instrument provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement, as an external set-point inputter for position feedback measurement of motorised stepping controllers. The optional 3rd input is a universal input that can be used for several functions, e.g. temperature dependent setpoint correction or differential control. The standard KS 90-1 is suitable for oxygen control using heated and unheated O2 sensors. This controller KS92-112-00000-000 is available from stock:
Available models and options expand / close
|
Single Loop Temperature Controller
KS50-1
KS52-1
Full Order Number:
KS5x-1xx-xxxxx-xxx

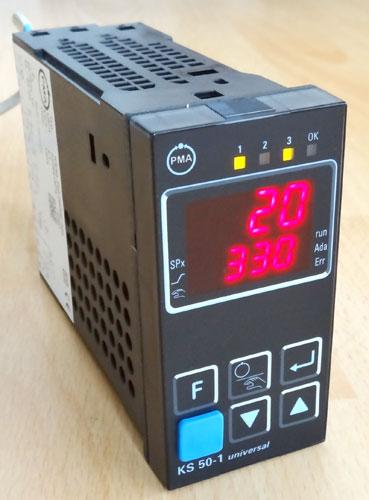

The universal KS 50-1 temperature controller is intended for precise and cost-effective control tasks. The instrument provides simple 2-point (on/off) control, continuous PID control or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement or as an external set-point input. The KS 50-1 has three process outputs that can be 3 relays or 2 relays plus a universal output. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a two-wire transmitter. Optionally there are two additional optocoupler outputs that can be used freely.
Available models and options expand / close
|
A compact, fully featured controller for demanding applications. KS 20-1 is the only controller of its size, flexible with up to 6 outputs, 2 digital inputs, a remote setpoint input, RS485 communications* and linked to best in class Blue Control software.
Available models and options expand / close
|

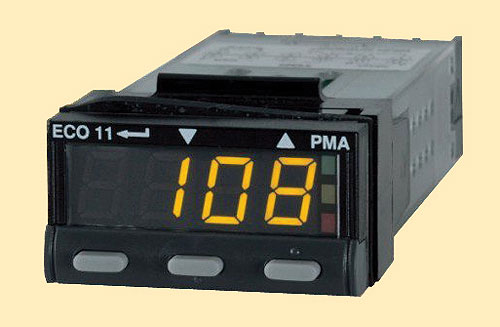

Due to its extremely compact dimensions, the ECO 11 can be installed even in the smallest machines. Its universal input and up to three switching outputs enable the controller to be adapted perfectly to the most varied automation tasks. The unit is configurable as a signaller or PID two-point controller with inverse (heating) or direct (cooling) characteristic.
Available models and options
|

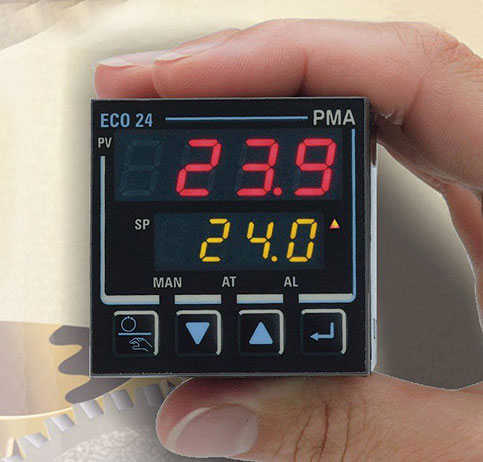

Due to its extremely compact dimensions, the ECO24 can be installed even in the smallest machines. Its universal input and the flexible modular concept for a wide range of output types enable the controller to be adapted perfectly to the most varied automation tasks. Similarly, the unit is configurable as signaller, continuous, 2-point or 3-point controller for heating or cooling, as well as heating/cooling tasks, i.e. for universal applications. Moreover, split-range operation is possible in all combinations (e.g. continuous/switching), and various alarm functions put a finishing touch to the comprehensive package.
Available models and options expand / close
|
Temperature Process Indicator
Digital 280-1
Full Part Number: D280-11x-xxxxx-xxx

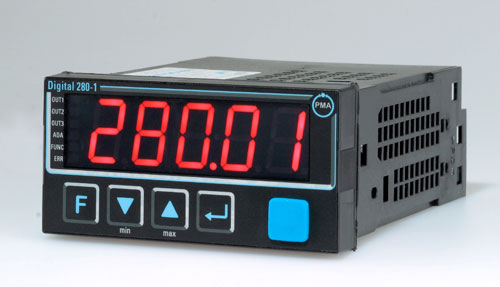

The PMA Digital 280-1 indicator ensures a fast reaction time with a scan rate of 100 ms cycle time. The instrument offers customer-specific linearization for all sensors (16 segments). The maximum and minimum values are always stored and may be displayed on the front for quick reference. In addition to an indicator the digital 280-1 can also be used as a signaller, on/off controller, two-point controller or a continuous controller.
Available models and options expand / close
|
Temperature Limit Controller
TB40-1
Full Part Number: TB40-1xx-000xx-xxx

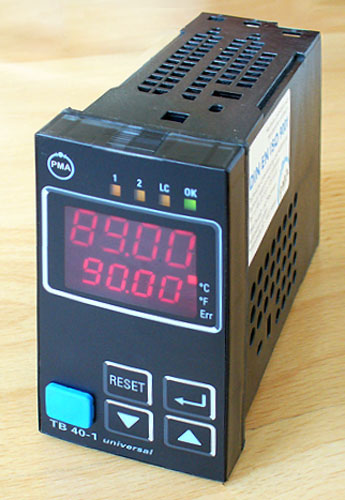

The TB40-1 limit controller has been type tested to DIN standards. The TB40-1 can be used for heating and refrigeration processes. It is suitable for all thermocouple types and resistance type sensors. All applications where an over or under temperature fault condition could present fire hazard or other hazard.
Available models and options expand / close
|

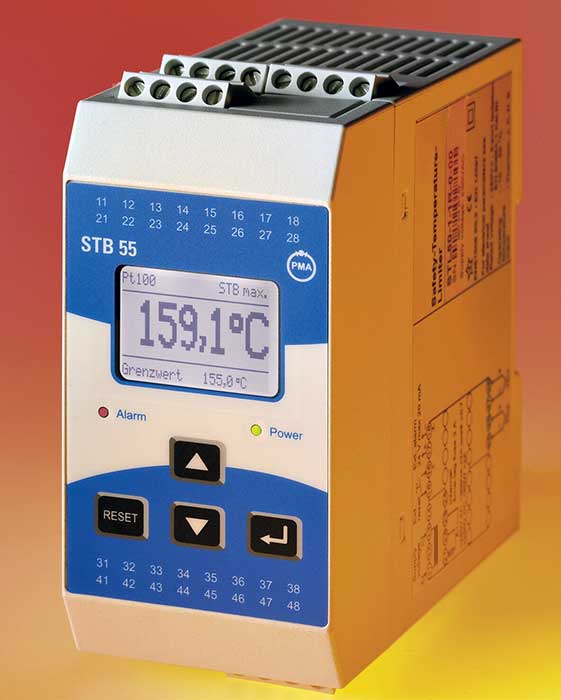

The STB55 safety temperature limiter is used as a behind panel device when thermal processes must be monitored and the system must be transferred into a safe operational state in case of fault.
Available models and options
|
