Multi-loop Controllers PMA

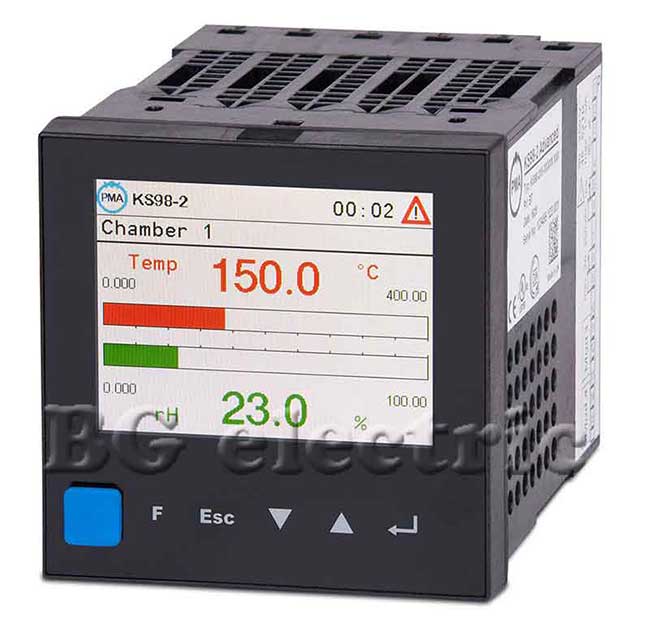

The KS 98-2 multi-function unit provides advanced functionality to its users. It benefits from having a fully modular I/O structure allowing to compile the number of analog and digital inputs and outputs exactly to the needs. The KS 98-2 offers a TFT Colour Display (320 x 240 pixels) with Touch. Individual plain text lines can be displayed with the current function states. Setpoint, actual values or manipulated variables can be visualised in either bar graphs or trend curves. The instrument is freely programmable based on an extensive function library to support the engineering of individual solutions from analog signal conditioning to digital signal operations and cascade control systems to complex meshed control loops.

• Display: 320x240 Pixel Colour TFT Display
• Operation: Touch with dedicated virtual buttons below the viewing area
• Mechanics: ¼-DIN panel mount Mounting depth 118mm
• IP rating: IP65 (Front)
• Inputs:
  Universal analogue input and 2 digital inputs
  Modular expandable for various types of input signals (TC, RTD, mA, mV/V, 2-wire transmitters, zirconia probes, 24V logic)
  Unit can support up to 12 dual channel I/O extension modules
• Outputs:
  2 or 4 Relays
  Modular expandable with various types of output signals (mA, V, SSR, 24V logic)
  Unit can support up to 12 dual channel I/O extension modules
• Communication: Ethernet, USB, CAN. Optional modules for RS485, Profibus, Profinet
• Data Storage: SD card
• Function Library and user program: Logic, Math, Control, Profiling, Alarming, Recording… User program can combine up to 2000 function blocks and manage up to 30 control loops

Available models and options expand / close

The Pro-EC44 has been designed to simplify user operation through an intuitive HMI combined with easy-to-use configuration and simulation software, Blue Control©. This allows the controller to be used by a variety of personnel without compromising the functionality available. Quick access to important product information is also facilitated with a front USB port. The Pro-EC44 controller is well suited to challenging applications such as: Plastics, Extrusion and Rubber, Industrial Ovens and Furnaces, Laboratory and Test Equipment, Environmental Chambers, Boiler and Steam Processes, Food and Beverage, Packaging. Controllers PRO96-1 and ProVU4 are not available anymore. The successor is Pro-EC44. We will help you choose the right part number for a replacement.

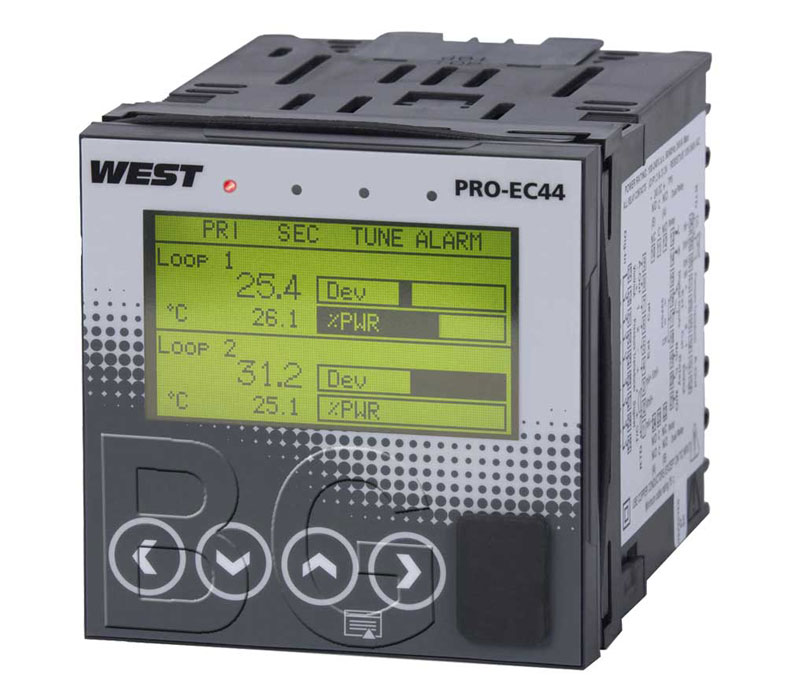

Pro-EC44 is a 1/4 DIN process engineering controller/profiler with advanced automation control technology capability and modular I/O options for temperature control systems. Front panel setup for simple or advanced control tasks is fast and easy, with a step by step configuration wizard saving working through several menus. Logical menu structure for intuitive navigation allows fast changes and updates in the settings also. Configuration files can be downloaded to a controller using a flash memory stick via the front USB port allowing for fast programming. Settings can also be read via the USB port to clone additional devices or configure a replacement. Datalog files can also be extracted locally via the USB for convenient access of process data.

The Pro-EC44 pages are formatted to show users important process information on a single page, minimising the steps to access data and settings. A colour change green/red LED backlight provides easily recognisable alarm indication to improve response times for corrective action. Single or dual loop capability in a single device, cascade, valve and ratio enhanced control with support features such as real time clock, timer, gain scheduling and profiler ensure Pro-EC44 has the flexibility for a process system needs. In addition datalogging, trending, USB, Ethernet options add more capability to this device. Direct access for programming is available via a top of controller connection port. The interface provides easy and fast access with Blue Control software.

• 1/4 DIN format
• Up to to 2 analogue inputs, 9 outputs, remote setpoint input, 9 digital inputs
• ON/OFF, PID heat only and Heat/Cool, Valve Motor Drive, Ratio Cascade Control
• Single, two loop, cascade or ratio control
• Graphical / text display (red/green backlit LCD)
• Profiler 255 segments shared by upto 64 programs
• USB host for configuration and data access (read/write) and logged data (read)
• Modbus RS485 - Modbus RTU (Master/Slave) or Modbus TCP Ethernet
• Up to 5 PID sets manual or automatic gain scheduling
• 7 Alarms – absolute, deviation, rate of change, sensor break, recorder memory, power
• Datalogger with real time clock
• Standards CE, UL
