Miniature Regulators and Controllers CAL Controls

CAL
CAL Controls
Looking for the price? [x]
Copy & paste part number:

MAXVU8MAXVU16

MAXVU8
MAXVU16

UL сертификат
Made in GB

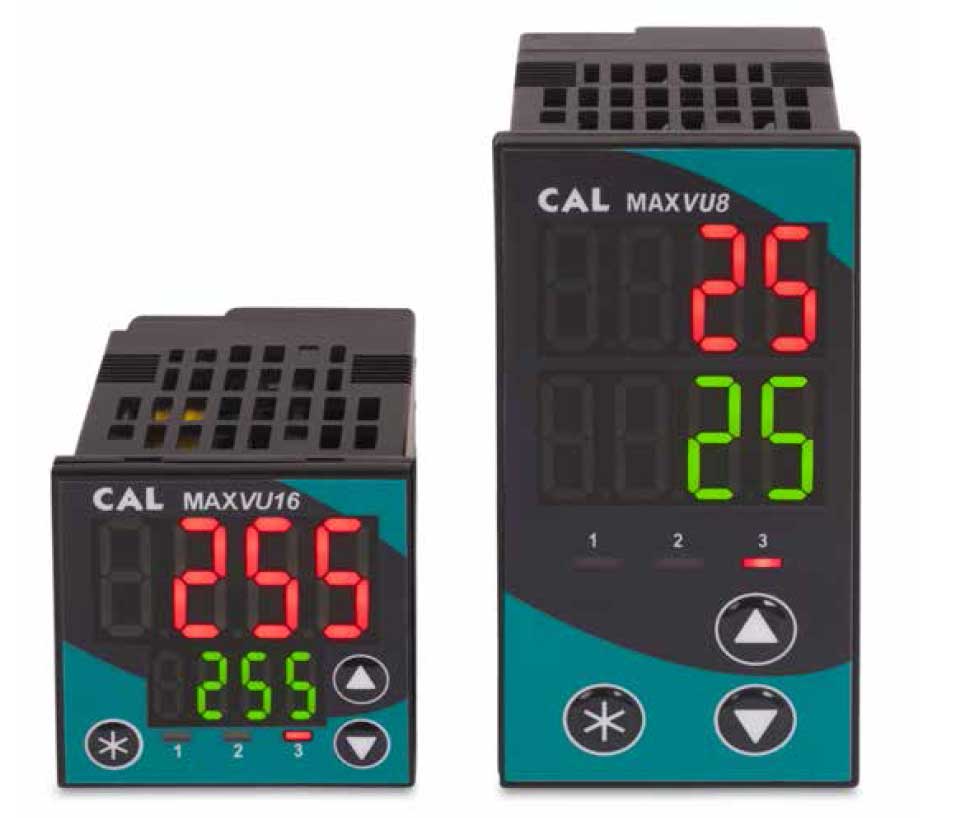

MAXVU16 and MAXVU8 has been designed to offer essential temperature control in a device that’s easy to install, fast to program and with improved display visibility. MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed, it offers a universal input and up to 3 outputs with a choice of either relay or SSR. Typical applications include packaging processes such as sealers and many more.

  • High visibility 18mm display digits (10.2mm lower display
  • Quick setup menu with top 10 configuration parameters
  • Thermocouple, PT100 or linear DC sensor input
  • Up to 3 outputs, relay or SSR
  • 2 process alarms, high/low, deviation or band.
  • 3 button operation
  • 2 x 4 digit display and 3 output status LEDs
  • Front panel configuration or via PC configuration software
  • RS485 Modbus RTU communications

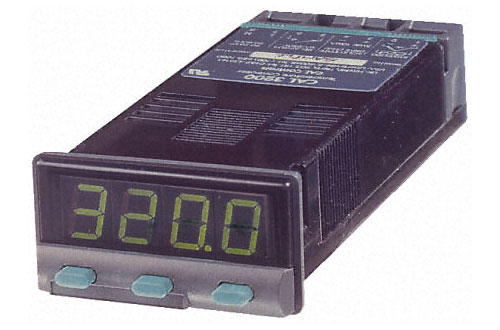

Single Loop Temperature Controller 3200

Single Loop Temperature Controller 3200

Made in GB

The CAL 3200 1/32DIN temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications. Designed for industrial or scientific applications CAL3200 has an impact resistant smoked fascia with large rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot.

  • 1 x 4 digit LED display with 2 output LED
  • Easy-to-use autotuning
  • Simple menu-driven configuration
  • Removable terminal block for easy wiring.
  • IP66 protection

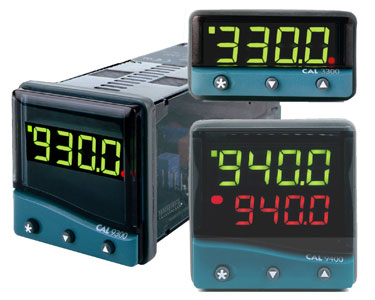

Controllers 3300930094009500

Controllers
3300
9300
9400
9500

Made in GB

The CAL 3300 1/32DIN temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications. Designed for industrial or scientific applications CAL3300 has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot.

The CAL 9300 1/16DIN temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications. Designed for industrial or scientific applications CAL9300 has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot.

The CAL 9400 1/16DIN dual-display temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications. Designed for industrial or scientific applications CAL9400 has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique DAC function minimises overshoot.

The CAL 9500P 1/16DIN temperature controller has a programmer function with up to 31 programs (126 segments max). It is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications. Styled for laboratory or industrial applications CAL9500P has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot. The integrated programmer function is ideal for applications requiring temperature profile control.
