Pressure measurement Baumer

Fully welded pressure transmitter with flush membrane. Cavity-free process connection Resistant to all conventional CIP cleaning media. Compact installation from G 1/2 A. Absolute pressure, relative pressure and vacuum measurement.

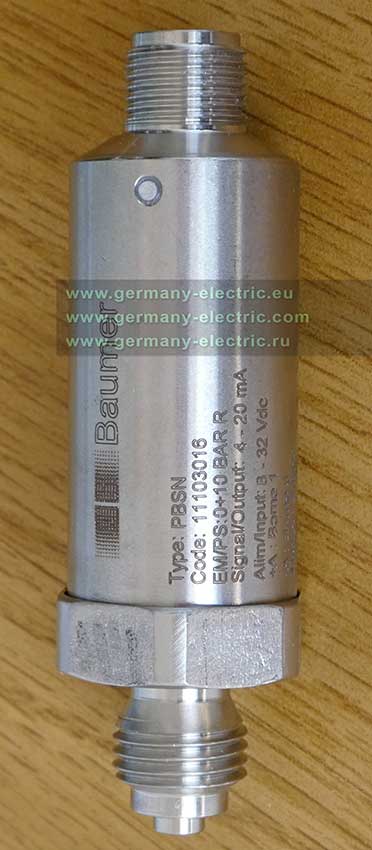

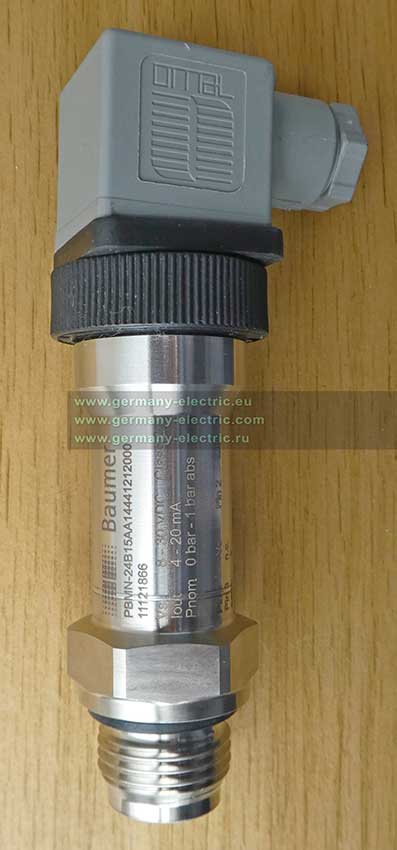

PBSN - Abrasive and chemical resistant pressure transmitter for industrial applications. Standard use from 1 to 600 bar. Robust ceramic measuring cell. Robust stainless steel housing. Absolute pressure, relative pressure and vacuum measurement.

Fully welded version. Robust stainless steel housing. High overpressure resistance. Excellent long term stability. Measuring range 0 … 60 bar up to 0 … 1600 bar. Accuracy (20°C, Linearity, hysteresis, repeatabillity, error of span is 0,5%. Type of pressure Relative. Output signal 4 … 20 mA / 10 … 33 VDC.

Abrasive and chemical resistant pressure transmitter for industrial applications. Standard use from 1 to 600 bar. Robust ceramic measuring cell. Robust stainless steel housing. Absolute pressure, relative pressure and vacuum measurement.

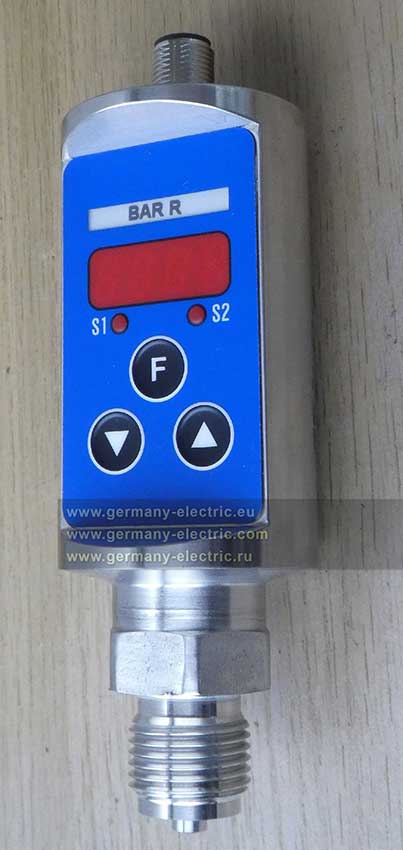

Pressure measurement - TED Pressure switch. From -1 … 0 bar up to 0 … 400 bar. Robust stainless steel housing for severe industrial environments. Abrasive and chemical resistant. Two threshold outputs (PNP transistors or galvanic isolation).

Fully welded pressure transmitter for hygenic applications. 3-A sanitary standards, FDA-compliant, EHEDG-certified. Resistant to all common CIP cleaning media. SIP-capable (150 °C max, 30 min). Versions available for high media temperatures (200 °C). Threadless mounting using a clamping connection. Optionally available with switching output. Tank linearization and volume calculation. Absolute pressure, relative pressure and vacuum measurement.

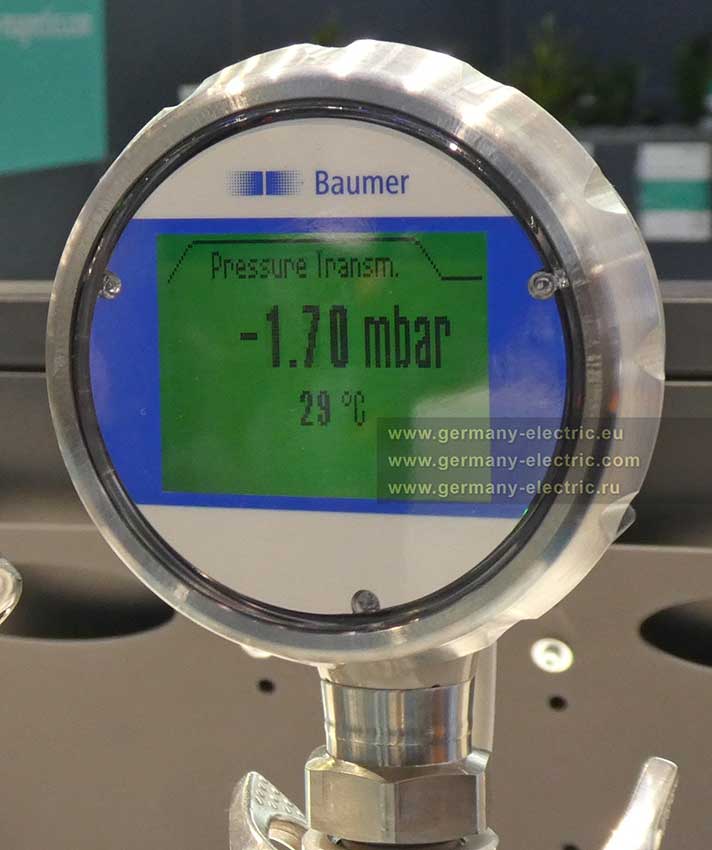

CombiPress PFMN - fully welded pressure transmitter with flush membrane and touch screen. Cavity-free process connection. Resistant to all conventional CIP cleaning media. Compact installation from G 1/2 A. Optionally available with switching output. Absolute pressure, relative pressure and vacuum measurement. Tank linearization and volume calculation.

CombiPress PFMH. Fully welded pressure sensor with hygienic connection and touch screen. 3-A sanitary standards, FDA-compliant. Resistant to all common CIP cleaning media. SIP-capable (150 °C max, 30 min). Versions available for high media temperatures (200 °C). Threadless mounting using a clamping connection. Optionally available with switching output. Tank linearization and volume calculation. Absolute pressure, relative pressure and vacuum measurement.

Temperature measurement FlexTop. In-head transmitter for CombiTemp- or OEM applications. Specifically for Pt100. Input: Pt100 2-, 3- or 4-conductor. Measuring range -200 ... +850°C. More accurate than 0.25°C. ATEX explosion protection. DIN form B housing installation.

Temperature measurement TCR6. Robust standard sensor. Housing DIN Form B. Immersion depth up to 3000 mm. 4...20 mA or HART output. Pt100 class A / B, Pt1000 configurable.

Temperature measurement TE2. Compact RTD temperature sensor. Compact and rugged design. Customer-specific immersion depth down to 3000 mm. Precision measurement from -50...250°C. Integrated 4...20 mA transmitter or Pt100 output. Easy process implementation from DN 25 or in tank.

Temperature measurement. Room or outdoor temperature sensor. Sensor made of AISI 316L stainless steel. Suitable for indoor and outdoor applications. Optionally available with touch screen. Cable or fixed sensor. Wall or tube mounting.

Pressure measurement PP20. Competitive pressure sensor for railway applications. Tested according EN 50155. High dielectric strength of 1 kV AC exceeding the standard according EN 50155. High accuracy over a wide temperature range (-40 … 125 °C) due to active compensated temperature compensation. Extended EMC immunity compared to EN 50121-3-2. Traceability according GS1 standard. Designed for a wide range of railway applications as e.g. pantograph pressure control, coolant recirculating pumps and pneumatic and hydraulic brake systems.
