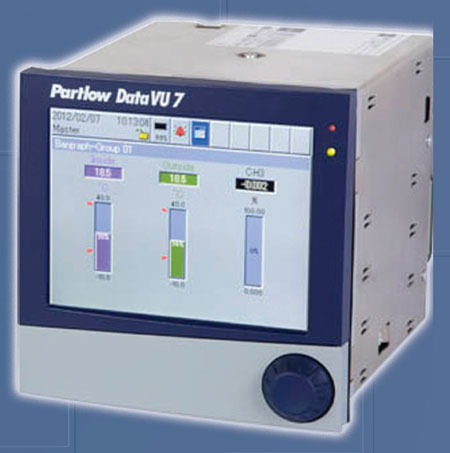

DataVU 7 provides advanced flexibility to meet a user’s specific requirements without the need to change a process to fit the recorder. If process requirements are subject to change at a later date then the user benefits from the ease with which modifications can be made to the recorder configuration. The recorder is fully scalable – cards can be added to the recorder, facilitating future expansion. Reporting can be tailored to provide the exact information needed. The DataVU 7 allows reports to be created for daily, weekly, monthly and yearly periods. Furthermore if particular data needs to be evaluated then reports can be created using a custom date range to provide maximum flexibility.
- 6 to 18 internal analog inputs
- Up to 54 external inputs
- 5.5’ TFT Display
- Up to 24 digital inputs and 7 relay outputs
- Set-up, Comms and Evaluation software
- Maths module, batch reports and web server
- Measurement data storage on CompactFlash memory card or USB memory stick
- Easy operation by control knob or touchpad (stainless steel version)
- Automatic read-out of data through the Communications Software
- Interface to SCADA systems, to PLC controls and PC systems
- RS485 Modbus RTU master или slave
- USB порт для передачи данных
- Simultaneous recording for up to 3 batch reports
- Batch control (start, stop, texts) through barcode reader
- Integrated web server
- Paperless recorder DataVU 7 DataVU 6 и DataVU 7 Brochure
- DataVU7 Paperless Recorder Datasheet
