AC drives

PETER electronic

The products offered by the company PETER electronic GmbH have a significant niche in the market of electronic products and due to a good price-quality ratio, compete with well-known large companies, manufacturers of similar equipment. The product range consists of devices for controlling three-phase asynchronous motors as well as DC motors. The whole range is constantly being improved and supplemented and today includes softstarters and DC braking devices. We guarantee our customers that we ship all products within 10 working days.


VersiDrive i 43C2+VersiDrive i 21MS3VersiDrive i E3/3E3VersiDrive i E3S

VersiDrive i 43C2+
VersiDrive i 21MS3
VersiDrive i E3/3E3
VersiDrive i E3S

Made in Germany

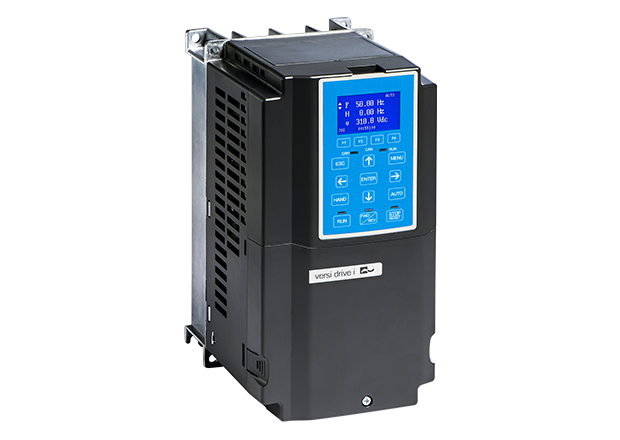

The 3-phase AC motor drive of PETER electronic from 0,75 up to 110kW VersiDrive i provides the most efficient solution for all types of drive applications. It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors. The 3-phase AC drives VersiDrive i ... C2+ Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange.

Features:

  • speed control, torque and bearing control
  • induction motors, PM motors
  • safe torque shutdown STO
  • detachable operating unit
  • max. rotating field frequency 599Hz
  • integrated braking chopper
  • degree of protection IP20
  • integrated mains filter
  • integrated MODBUS
  • integrated CANopen
  • replaceable fan

Function:

  • control and setpoint entry via terminals
  • operating units and bus systems
  • built-in PLC function
  • potential-free control and signalling contact
  • motor catch function
  • PWM in-/output
  • PI controller
Manufactured part numbers open, use the search ctrl + F
2D000.21020 VD i 020-21MS3-F
2D000.21037 VD i 037-21MS3-F
2D000.21075 VD i 075-21MS3-F
2D000.21150 VD i 150-21MS3-F
2D000.21220 VD i 220-21MS3-F
2D000.43004 VD i 400-43MS3-F
2D000.43005 VD i 550-43MS3-F
2D000.43007 VD i 750-43MS3-F
2D000.43011 VD i 1100-43MS3-F
2D000.43015 VD i 1500-43MS3-F
2D000.43018 VD i 1850-43MS3-F
2D000.43022 VD i 2200-43MS3-F
2D000.43037 VD i 037-43MS3-F
2D000.43075 VD i 075-43MS3-F
2D000.43150 VD i 150-43MS3-F
2D000.43220 VD i 220-43MS3-F
2D204.43004 VD i 400-43C2+
2D204.43005 VD i 550-43C2+
2D204.43007 VD i 750-43C2+
2D204.43011 VD i 1100-43C2+
2D204.43015 VD i 1500-43C2+
2D204.43018 VD i 1850-43C2+
2D204.43022 VD i 2200-43C2+
2D204.43030 VD i 3000-43C2+
2D204.43037 VD i 3700-43C2+
2D204.43045 VD i 4500-43C2+
2D204.43055 VD i 5500-43C2+
2D204.43074 VD i 7500-43C2+
2D204.43075 VD i 075-43C2+
2D204.43090 VD i 9000-43C2+
2D204.43110 VD i 11000-43C2+
2D204.43150 VD i 150-43C2+
2D204.43220 VD i 220-43C2+
2D204.43370 VD i 370-43C2+
2I300.23037 VD i 037/E3
2I300.23075 VD i 075/E3
2I300.23150 VD i 150/E3
2I300.23220 VD i 220/E3
2I300.40004 VD i 400/3E3
2I300.40005 VD i 550/3E3
2I300.40007 VD i 750/3E3
2I300.40011 VD i 1100/3E3
2I300.40015 VD i 1500/3E3
2I300.40018 VD i 1850/3E3
2I300.40022 VD i 2200/3E3
2I300.40075 VD i 075/3E3
2I300.40150 VD i 150/3E3
2I300.40220 VD i 220/3E3
2I305.23037 VD i 037/E3S
2I305.23075 VD i 075/E3S
2I305.23110 VD i 110/E3S
2I312.23037 VD i 037/E3/IP66ODS
2I312.23075 VD i 075/E3/IP66ODS
2I312.23150 VD i 150/E3/IP66ODS
2I312.23220 VD i 220/E3/IP66ODS
2I312.40004 VD i 400/3E3/IP66ODS
2I312.40005 VD i 550/3E3/IP66ODS
2I312.40007 VD i 750/3E3/IP66ODS
2I312.40011 VD i 1100/3E3/IP66ODS
2I312.40015 VD i 1500/3E3/IP66ODS
2I312.40018 VD i 1850/3E3/IP66ODS
2I312.40022 VD i 2200/3E3/IP66ODS
2I312.40075 VD i 075/3E3/IP66ODS
2I312.40150 VD i 150/3E3/IP66ODS
2I312.40220 VD i 220/3E3/IP66ODS
2I314.23037 VD i 037/E3S/IP66ODS
2I314.23075 VD i 075/E3S/IP66ODS
2I314.23110 VD i 110/E3S/IP66ODS

Accessories:

  • Profibus DP
  • Modbus TCP/IP
  • EtherNet/IP
  • EtherCAT
  • DeviceNet
  • ProfiNET
  • BACnet
  • E/A extensions
  • operating software
