Impeller flowmeters
Paddlewheel and impeller flowmeters have oscillating plates that allow fluid measurement. The rotating element generates a pulse when it passes a magnetic or optical sensor. The number of pulses is proportional to the velocity of the fluid at a given point in the pipe or duct. They offer relatively high accuracy at a low cost. Some insert versions are very easy to install. Our quote will always be lower than the manufacturer's price. Please send us the full part number of a device to get a quick response.

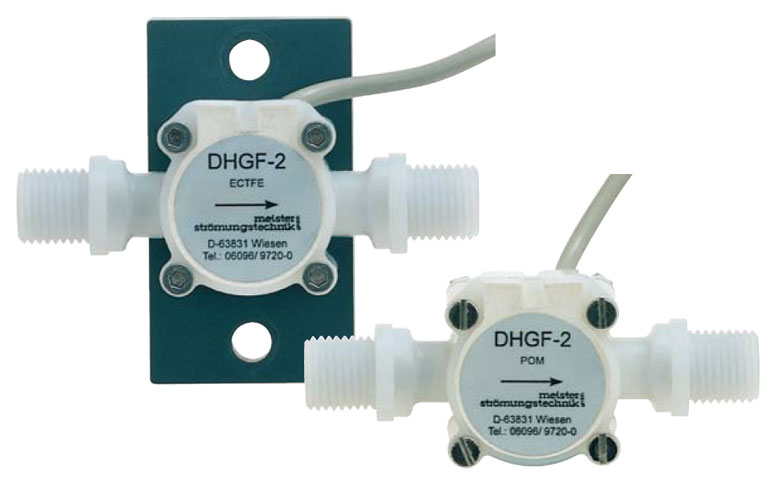

DHGF and DHGA are impeller flowmeters for liquids with electric pulse output. The device consists of a small number of parts, has small overall dimensions and weight, undemanding to the quality of the flowing liquid. |

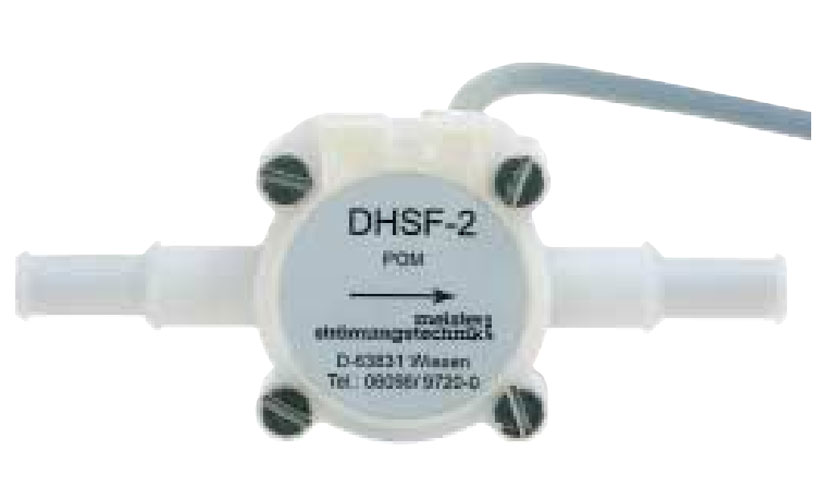

The DHSF-2 and DHSF-4 are impeller flowmeters for liquids with electrical pulse output. The device consists of a small number of parts, has small overall dimensions and weight, undemanding to the quality of the flowing liquid. |

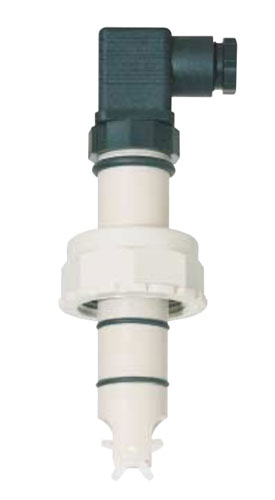

The DHTF-1 is a vane type submersible flow rate meter for liquids with an electrical pulse output. The device is made of polypropylene, it consists of a small number of parts, has small dimensions and weight, is undemanding to the quality of the flowing liquid. The flowmeters type DHTF-1 are impeller flowmeters.
|

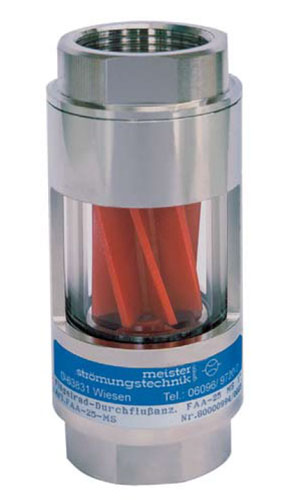

FAA is a vane-based flow-through axial flow meter for liquids. The device consists of a small number of parts, has small overall dimensions and weight, undemanding to the quality of the flowing liquid. The Meister flowmeter models FAA are impeller-flow indicators.
|

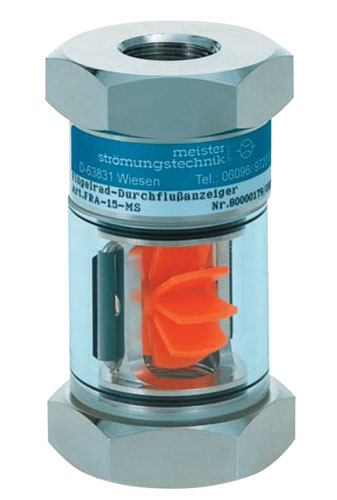

The FRA is a vane flow radial flow indicator for liquids. The device consists of a small number of parts, has small overall dimensions and weight, undemanding to the quality of the flowing liquid. |

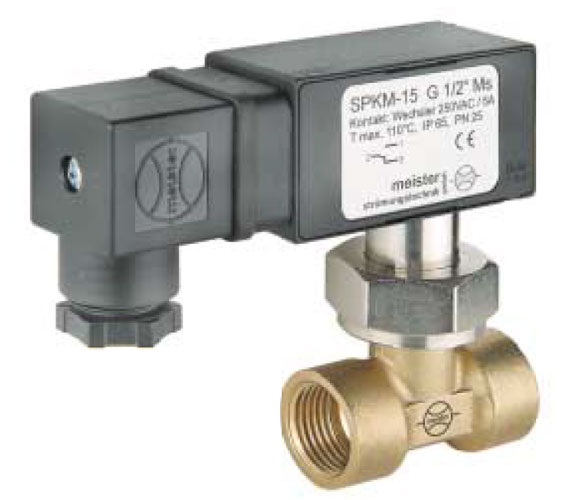

Flow switch SPKM for liquids vane type with an electric microswitch controlled by a moving magnet. The instrument is factory calibrated for horizontal flow. SPKM flow monitors operate on the principle of the paddle flow monitors. It is designed for installation in pipe systems. The spring-loaded paddle inside the device is moved by the medium flowing through it. A microswitch is actuated by means of a magnet. External measuring devices can be connected at the socket. However, the unit has a spring-loaded paddle that allows it to be mounted in any spatial position, including vertical. In this case, on-site calibration may be necessary to compensate for the weight of the paddle.
|

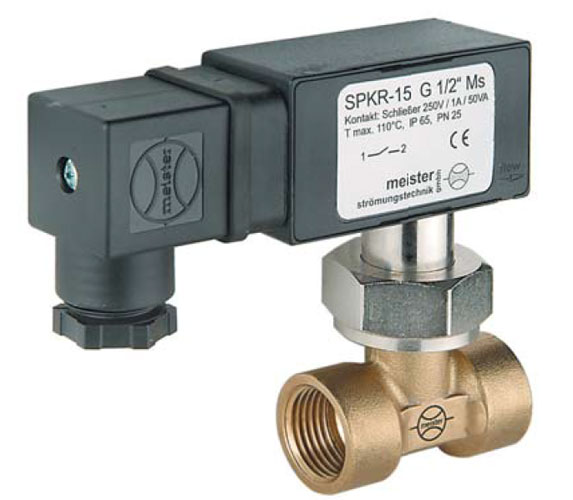

Flow switch for liquids vane type with an electric reed switch controlled by a moving magnet. The instrument is factory calibrated for horizontal flow. However, the unit has a spring-loaded vane that allows it to be mounted in any spatial position, including vertical. In this case, on-site calibration may be necessary to compensate for the weight of the paddle. SPKR flow monitors operate on the principle of the paddle flow monitors. It is designed for installation in pipe systems. The spring-loaded paddle inside the device is moved by the medium flowing through it. A Reed-contact is actuated by means of a magnet. External measuring devices can be connected at the socket.
|

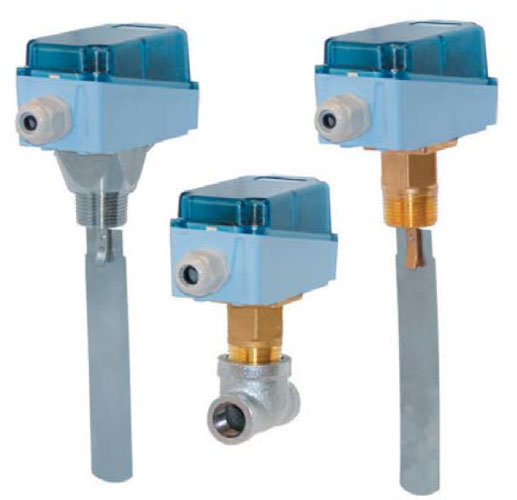

The flow switch for liquids is a vane type with a microswitch controlled by a moving magnet. The instrument is factory calibrated for a minimum value that can be easily changed on site.
|

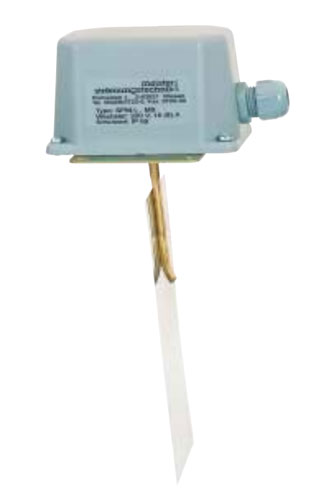

The flow switch for air is a vane type with a microswitch controlled by a moving magnet. The unit is factory calibrated for a minimum value that can be easily changed on site. The unit is designed for cooling, heating, and air conditioning applications.
|
The flowmeters type TDH…-15…/PPO and TDI…-15…/PPO for liquids are turbine flowmeters . |
